防爆尾端盒是按照国标GB3836.1-2000；GB3836.3-2000《爆炸性环境用防爆电气设备  第1部分：通用要求、第2部分：增安型“e” 》的有关规定设计制造的。防爆等级ExeⅡT4，适用于工厂一区、二区爆炸性气体混合物T1-T4的温度组别场所。Explosion-proof terminal kit is also designed as the requirement of GB3836.1-2000 and GB3836.3-2000. ExeⅡBT4 is suitable for hazardous area(Division 1&2), T1-T4.

1结构原理Structure Principle
WH防爆尾端盒分上、下两个盒体，它用于电热带的末端，使用电热带末端与外界隔绝，下盒腔内有隔板，使用电热带母线末端可靠隔开。WH terminal kit has two parts, using for insulating the end of the heating cable. The lower part can reliably separate the ends of heating cable.

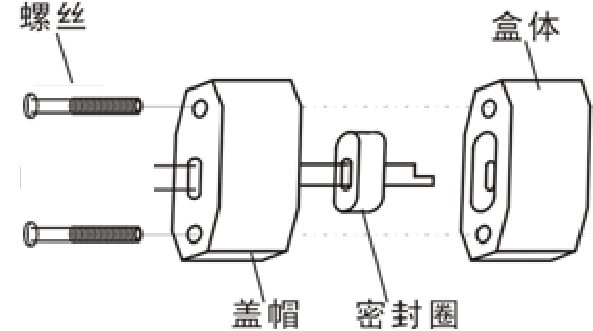

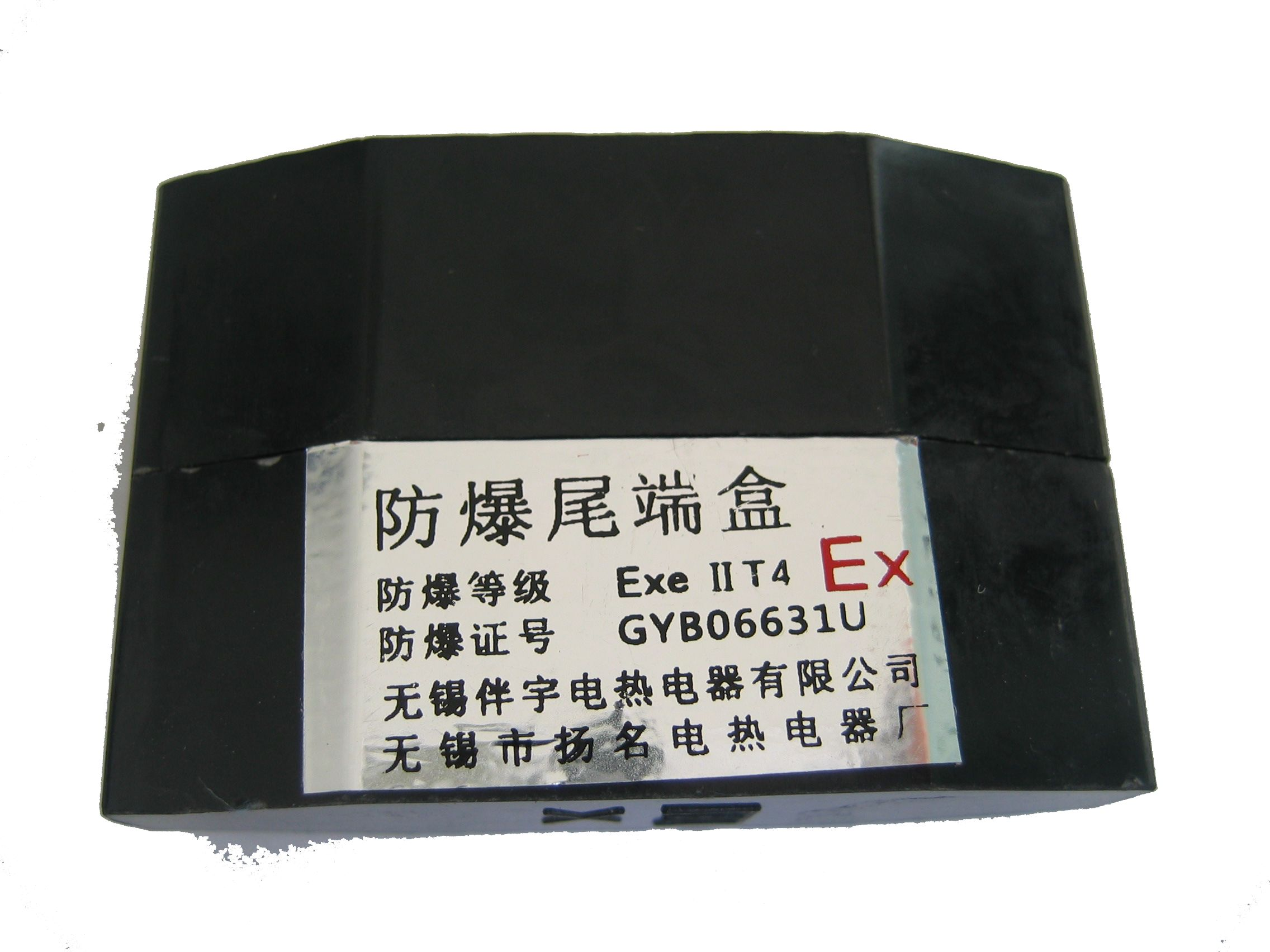

     尾端盒结构   图32                                                                       尾端盒   图33


Ø 打开尾端盒，取橡胶圈；
     Open the cover and take out of the sealing grommet
Ø 电伴热带剥好后，穿进橡胶圈，拧紧压板螺钉；
     Insert the heating cable into the sealing grommet, tighten the screw
Ø 电热带的尾端盒安装见图
     Specific mounting see diagram

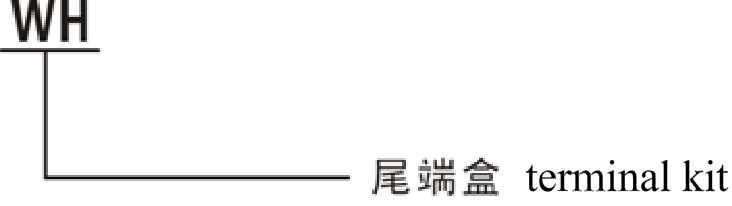

2产品型号Catalog Number

     图34
3技术性能指标Technical Parameters
 3.1正常工作条件 Normal Working Condition

a、环境温度ambient temp：－40℃ ～ +65℃
b、相对温度relative temp：≤95%

3.2主要技术指标 Technical Parameters
a、防爆等级explosion-proof level：ExeⅡT4
b、绝缘电阻insulation resistance：≥60MΩ
